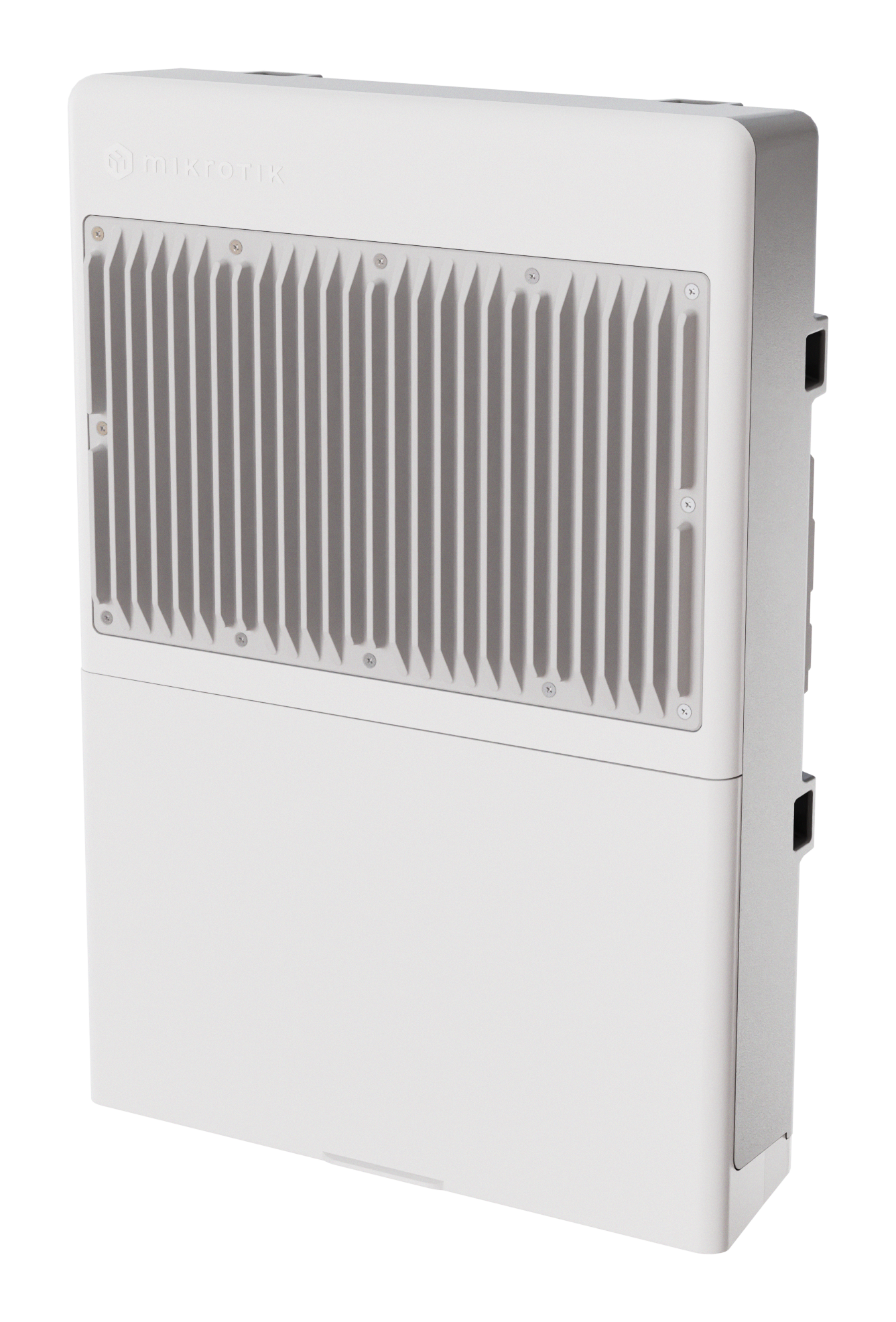

netPower Lite 8P
MikroTik makes networking hardware and software, which is used in nearly all countries of the world. Our mission is to make existing Internet technologies faster, more powerful and affordable to wider range of users.
8 190 грн.
Очікується
8 190 грн. × 1 = 8 190 грн.
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.
Specifications
| Product code | CSS610-8P-2S+OUT |
| Switch chip model | 88E6193 |
| Operating System | SwOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Number of DC inputs | 3 (2-pin terminal) |
| 2-pin terminal input Voltage | 24-57 V (Battery 22-30 V) |
| Max power consumption | 208 W |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
PoE-out
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1.0 A |
| High voltage PoE-Out current limit | 0.64 A |
| Total output power | 120 |
Ethernet
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| SFP+ ports | 2 |
Other
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Certification | CE, EAC, ROHS |
| IP | 54 |
Switching results
| CSS610-8P-2S+OUT | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,275.7 | 27,635.9 | 6,578.9 | 26,947.4 | 41,666.7 | 21,333.3 |
| Switching | Non blocking Layer 2 capacity | 2,275.7 | 55,271.8 | 6,578.9 | 53,894.7 | 41,666.7 | 42,666.7 |
| Switching | Non blocking Layer 1 throughput | 2,275.7 | 28,000.0 | 6,578.9 | 28,000.0 | 41,666.7 | 28,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,275.7 | 56,000.0 | 6,578.9 | 56,000.0 | 41,666.7 | 56,000.0 |
